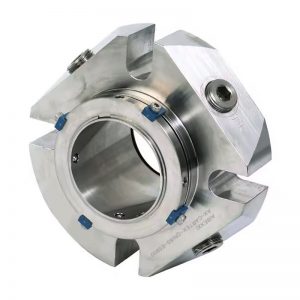

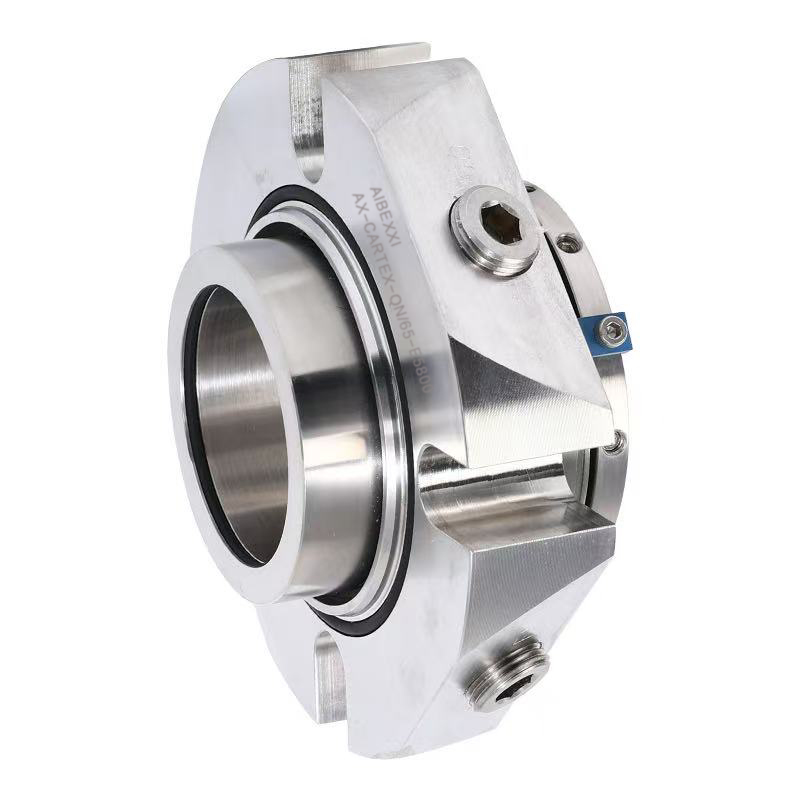

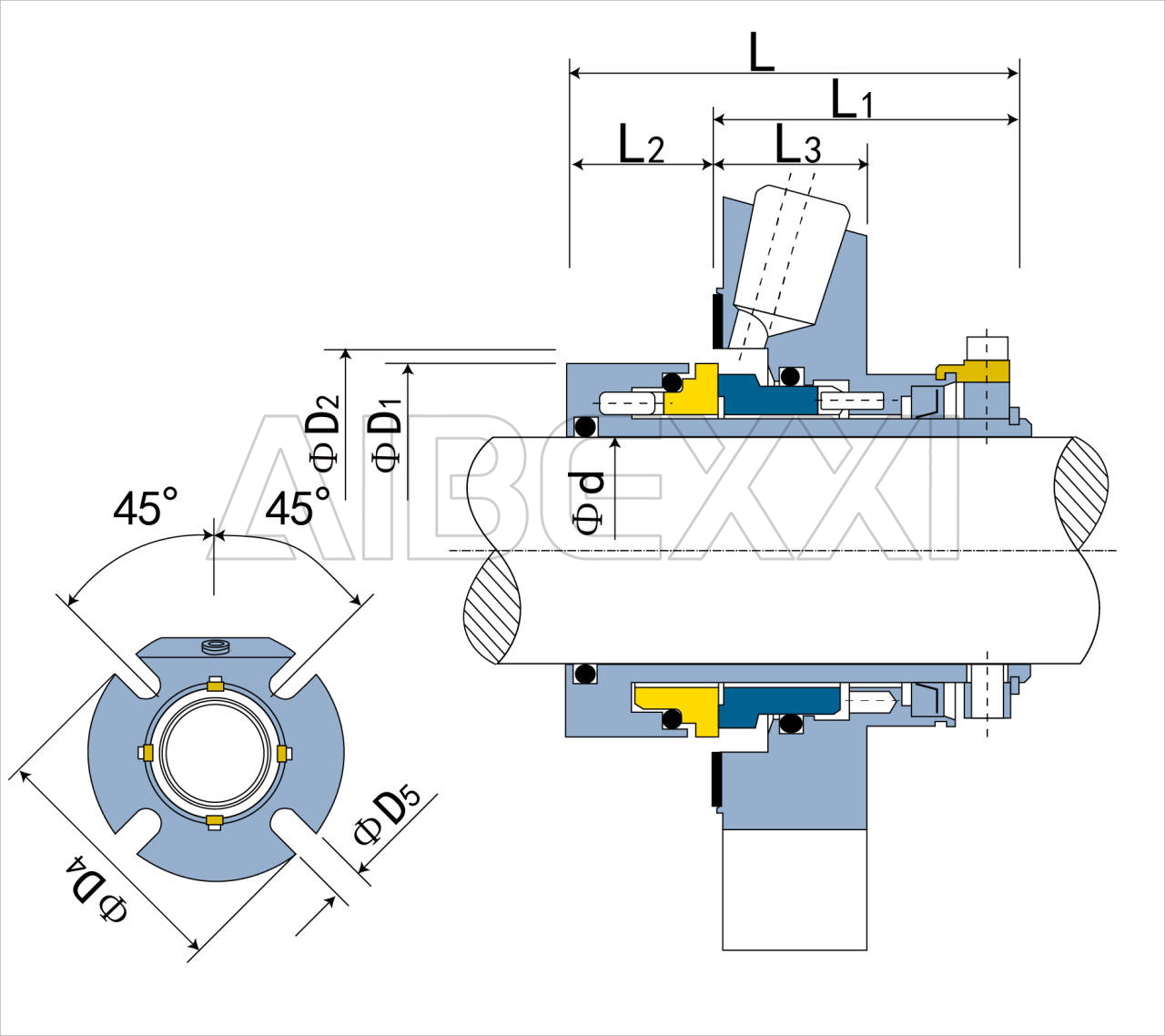

This is single cartridge seal.Can replace Burgmann Cartex-QN.
Features
- Single seal
- Cartridge
- Balanced
- Independent of direction of rotation
- Single seal for operation with unpressurized quench. Same as “AX-CARTEX–SN’ version but with outboard lip seal . The cover has auxiliary connections for flushing and quench.
Lip seal: NBR (P), PTFE carbon reinforced (T3). - Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)
Advantages
- Ideal seal for standardizations
- Universal applicable for packings conversions, retrofits or original equipment
- No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height
- No damage of the shaft by dynamically loaded O-Ring
- Extended service life
- Straightforward and easy installation due to pre-assembled unit
- Individual adaptation to pump design possible
- Customer specific versions available
Operating range
Shaft diameter:
d1 = 25 … 100 mm (1.000″ … 4.000″)
Other sizes on request
Temperature:
t = -40 °C … 220 °C (-40 °F … 428 °F)
(Check O-Ring resistance)
Sliding face material combination BQ1
Pressure: p1 = 25 bar (363 PSI)
Sliding velocity: vg = 16 m/s (52 ft/s)
Sliding face material combination
Q1Q1 or U2Q1
Pressure: p1 = 12 bar (174 PSI)
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement:
±1.0 mm, d1 ≥75 mm ±1.5 mm
Materials
Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
Springs: Hastelloy® C-4 (M)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)
