Chemical Processing

BXMA-A03(SCMS-DWB)

SCMS-DWB™ Double seal Wet(liquid barrier) and integral load carrying BearingSCMS-DDB™ Double seal Dry(contacting – gas barrier) and integral load carrying BearingThe seal is offered with the following features:

BXMB-A05(BSIV)

Single Bellows The BSIV™ range of single cartridge mechanical seals has been designed as a value-for-money, high-performance sealing solution for general applications. Inventoried in SHS bellows materials. Other material combinations are available, including a full, solid alloy 276 bellows and gland arrangement in all ANSI sizes. Features:

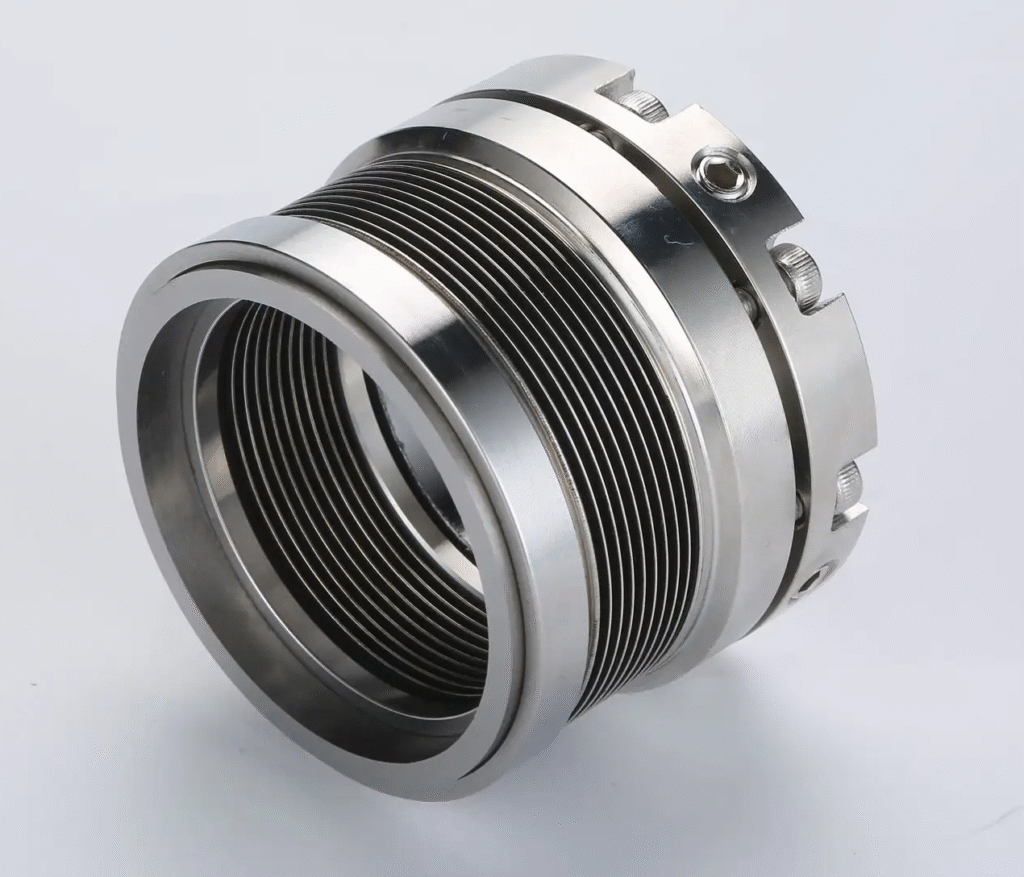

BXMB-J02(609)

High-temperature, Rotating Edge-welded Metal Bellows Seal The Type 609 is a high-temperature (to 425°C/800°F) rotating seal head assembly that incorporates all of the rugged features of the Type 604, but is intended for those demanding applications where a dependable, high-strength, rotating seal is preferred. A narrow cross-section design enables the Type 609 to fit in […]

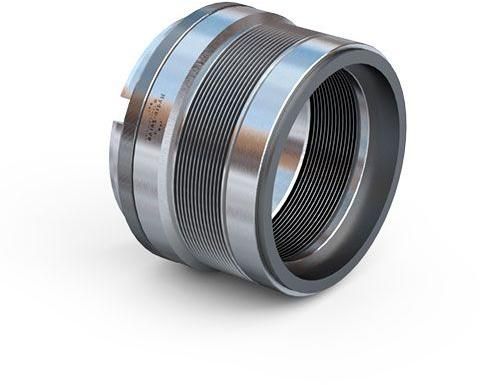

BXMB-J01(604)

High-temperature, Stationary Edge-welded Metal Bellows Seal The Type 604 is a high-temperature, general-purpose, stationary edge-welded metal bellows assembly for applications to 425C/800F. Available in either AM350 or Alloy 718, its high-strength design provides maximum reliability. The stationary bellows design accommodates high shaft-to-seal-chamber misalignment. Unlike rotating seals that must flex on every revolution to accommodate shaft-to-seal-chamber […]

BXMA-B09(SeccoMix II)

Features Advantages Operating range Shaft diameter:d1 = 25 … 220 mm (0,98″ … 8,66″)Pressure: p1 = vacuum … 6 bar (87 PSI)Temperature:t1 = -20 °C … +200 (250*) °C(-4 °F … 392 (482*) °F)Sliding velocity: vg = 0 … 2 m/s (0 … 6 ft/s)Axial movement: ±1.5 mmRadial movement: ±1.5 mm For applications beyond this […]

BXCS-J01(4610)

Compact, General-duty, Single Cartridge O-ring Seal The Type 4610 single cartridge seal, available off-the-shelf the world over, combines affordability with fluid-sealing dependability. It’s the complete solution for sealing satisfaction in general industrial applications. It meets key industry pump standards and is designed to permit use in rotating shaft equipment, including ANSI/DIN pumps, close-coupled pumps, vertical […]

BXDG-J01(220)

Aura 220 reduces operational and transactional costs using a patented polymeric sealing device. Aura 220 reduces leakage rates by up to 15 percent, lowering the total cost of operation while protecting the environment. An enhanced rotor design extends scheduled maintenance periods, and the optional bi-directional capability reduces the need for an extensive spares inventory. Aura […]

BXCS-S06(4RPS)

*Product description Cartridge mechanical seals for KSB chemical water pumps.

BXCS-S05(4RPD)

*Product description Cartridge mechanical seals for KSB pumps. *Apply to the host KSB Pump Company *Product features Single cartridge seal Pusher Multiple springs seal Independent of direction of rotation Admissible axial movement ±1 *Product parameters […]
