Features

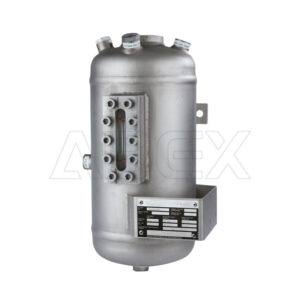

With the EagleBurgmann TS4000
thermosiphon system it is possible to
supply buffer/barrier fluid to double and
tandem mechanical seals for a broad
range of applications. The range is
available in completely gap-free design
with dished heads, sight-glass for level
monitoring and with cooling coil. TS
vessels are equipped as standard with all
the necessary system connections and
brackets. The modular system allows the
TS4000 vessels to be combined with a
wide range of system components such as,
level switch, circulation pump, hand refill
pump, thermometer, etc.
Circulation in accordance with API 682/
ISO 21 049: Plan 52, Plan 53A
Advantages
• Gap-free design; pickled and passivated
surface inside and outside
• Suitable for a wide range of demanding
operating conditions: TS4030 up to
30 bar/200 °C
• Cooling water connections at top (OUT)
and bottom (IN): optimum draining and
venting
• Sockets with recessed gasket: no
contamination of the circuit by thread
sealant
• Robust design with weld-pad type
sight-glass for optimum visual level
monitoring
• Modular system: combination with a wide
range of system components possible
- Chemical industry
• Pharmaceutical industry
• Food and beverage industry
• Refining technology
• Oil and gas industr
