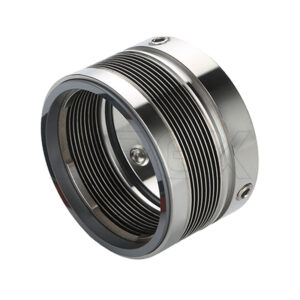

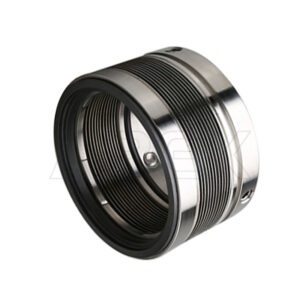

Features
- For unstepped shafts
- Single seal
- Balanced
- Independent of direction of rotation
- Metal bellows rotating
Advantages
- For extreme temperature ranges
- No dynamically loaded O-Ring
- Self cleaning effect
- Short installation length possible
- Pumping screw for highly viscous media available (dependent on direction of rotation).

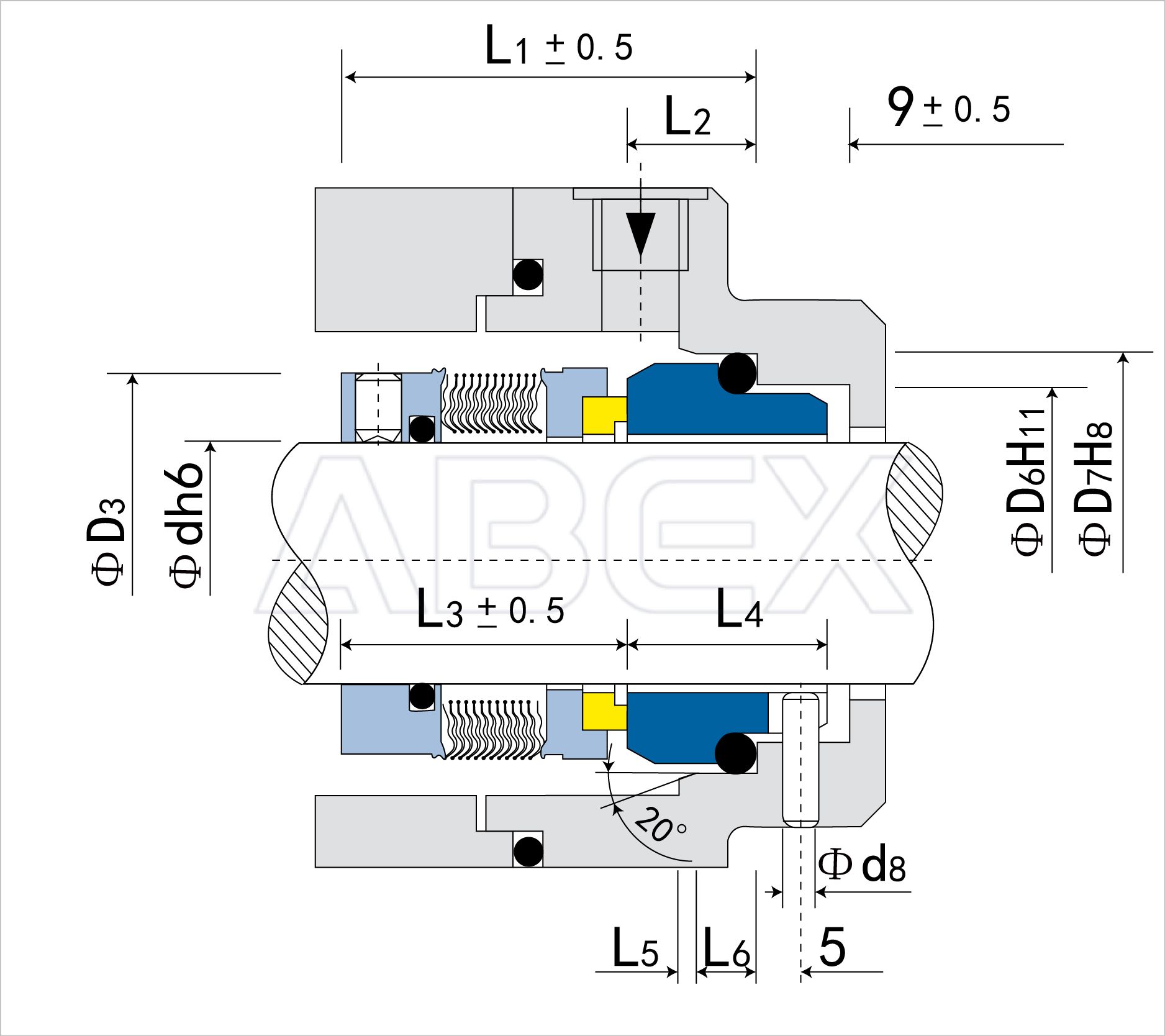

Operating range
Shaft diameter:
d1 = 16 … 100 mm (0.63″ … 4“)
Externally pressurized:
p1 = … 25 bar (363 PSI)
Internally pressurized:
p1 <120 °C (248 °F) 10 bar (145 PSI)
p1 <220 °C (428 °F) 5 bar (72 PSI)
Temperature: t = -40 °C … +220 °C
(-40 °F … 428) °F,
Stationary seat lock necessary.
Sliding velocity: vg = 20 m/s (66 ft/s)
Materials
Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
Seat: Silicon carbide (Q1)
Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)
Metal parts: CrNiMo steel (G), Duplex (G1), Hastelloy® C-4 (M)
