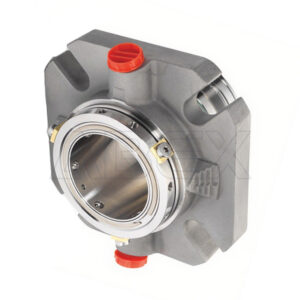

BXMB-A05(BDTP)

Type：	Metall Bellow Double Seal
Replacement：	AES BDTP
Temperature：	-30℃ to +204℃
Pressure：	≤2.0Mpa
Speed：	≤20m/s
Material：	A,B,Q1,Q2,U1,U2,T,Graphite,V,G,F,M,T6

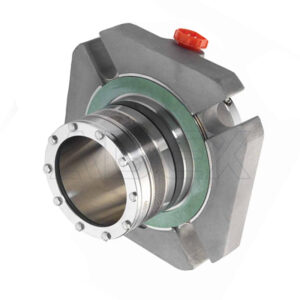

Bellows Double Seal

The BDTP™ (Bellows Double Tandem Pumping) is a highly-innovative hybrid design, modular to the BDFI™. The seal’s directed barrier fluid flow path achieves optimum heat removal at both sets of seal faces. The inboard bellows unit is ideally suited to replace the semi-dynamic sliding elastomer of a conventional pusher type seal which allows it to be more readily applied to thermal applications.

Features:

Inboard bellows unit ideally situated to replace sliding elastomer of conventional pusher type seal
Integral bi-directional flow inducer
Fits on pumps with thin radial cross sectional spaces
50% more bellows than industry standard reduces stress on each convolution of bellows stack
Modular design enables use on multiple applications, simplicity of purchase and fast delivery

Standard ISO/ANSI Box 28.00 mm-65.00mm(1.125′-2.625′)

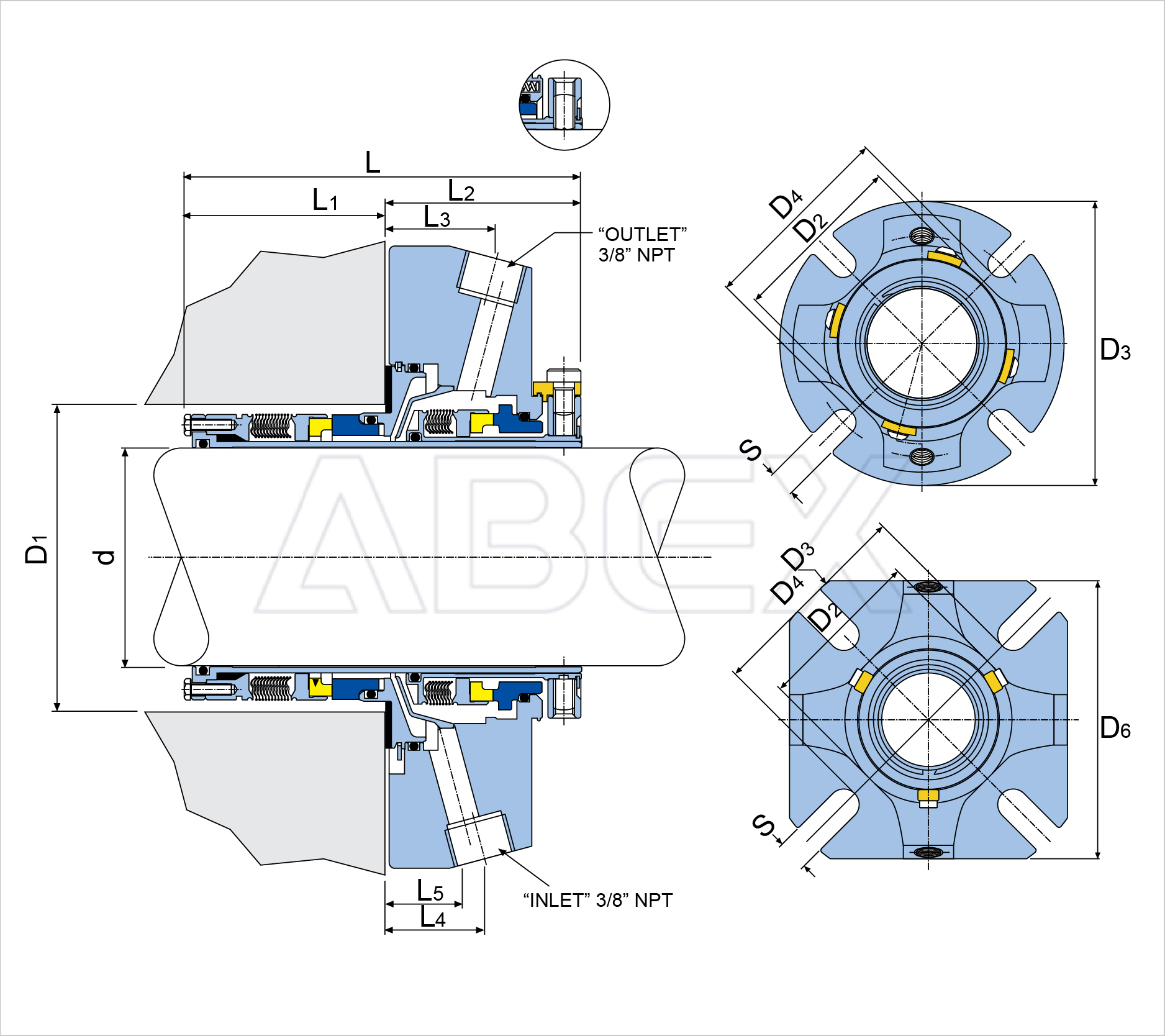

d	D1		D2	D3	D4	L	L1	L2	L3	L4	L5	S
(mm)	(min)	(max)	D2	D3	D4	L	L1	L2	L3	L4	L5	S
28	44	52	57.2	111.1	62.2	100.8	48.4	52.4	28.6	19.1	20.6	14
35	51	60.3	67	104.1	71.8	100.8	48.4	52.4	28.6	19.1	20.6	11
45	63.5	73	75.7	139.1	83.8	106.7	53.6	53.1	33	19.1	31.5	14
55	74	90.5	86.6	150	100.3	108.7	55.6	53.1	29	22.2	25.3	17.5
60	79.4	95	94.4	170.8	108.7	108.7	55.6	53.1	29.7	19.1	26.5	17.5
63	85.8	95	94.4	170.8	108.7	114.9	61.8	53.1	33	19.1	31.5	17.5
65	88.9	98	98.3	180.3	111.9	114.9	61.8	53.1	33	19.1	31.5	17.5
1.125	1.75	2.062	2.25	4.375	2.449	3.97	1.908	2.062	1.125	0.75	0.812	0.551
1.375	2	2.375	2.638	4.1	2.827	3.97	1.908	2.062	1.125	0.75	0.812	0.433
1.75	2.5	2.875	2.982	5.475	3.297	4.2	2.109	2.091	1.299	0.75	1.24	0.551
1.875	2.625	3	3.108	5.906	3.45	4.2	2.109	2.091	1.299	0.75	1.24	0.689
1.875-D	2.625	2.875	3.025	4.875	3.325	4.2	2.109	2.091	1.15	0.8	1.15	0.472
2.125	2.875	3.562	3.408	5.906	3.95	4.28	2.109	2.091	1.14	0.875	0.995	0.689
2.375	3.125	3.75	3.718	6.725	4.28	4.28	2.109	2.091	1.17	0.75	1.043	0.689
2.5	3.375	3.75	3.718	6.725	4.28	4.525	2.437	2.091	1.299	0.75	1.24	0.689
2.625	3.5	3.875	3.871	7.1	4.405	4.525	2.437	2.091	1.299	0.75	1.24	0.689

Large ISO/ANSI Plus Box Bore

d	D1		D2	D3	D4	D6	L	L1	L2	L3	L4	L5	S
(mm)	(min)	(max)	D2	D3	D4	D6	L	L1	L2	L3	L4	L5	S
1.125	1.75	2.75	2.323	5	3.199	3.9	3.97	1.908	2.062	1.125	0.75	1.125	0.551
1.375	2	3.062	2.638	5.375	3.449	4.25	3.97	1.908	2.062	1.125	0.75	1.125	0.551
1.75	3.5	4	3.1	6.75	4.449	5.48	4.2	2.2	2	1.087	0.79	1.087	0.551
1.875	3.5	4	3.5	6.75	4.449	5.48	4.2	2.2	2	1.087	0.619	1.087	0.551
2.125	3.875	4.187	3.715	7.6	4.661	6.205	4.28	2.28	2	1.125	0.669	1.125	0.689
2.5	4.5	4.812	4.525	8.225	5.411	6.705	4.525	2.437	2.091	1.231	0.76	1.231	0.689
2.625	4.5	4.812	4.525	8.225	5.411	6.705	4.525	2.437	2.091	1.093	0.76	1.093	0.689
