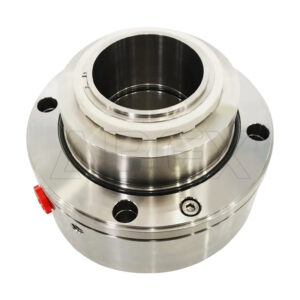

Dry Gas seal, can replace Flowserve GF200.
A double-seal, non-contact, bidirectional design used in applications where leakage of hazardous pumped media is unacceptable. The seal employs inert gas as a lubricating medium, eliminating the need for buffer fluid and preventing contamination of the process fluid. It provides enhanced protection—even if the outer seal fails, no leakage occurs. Prior to operation, the spiral groove system is tested to ensure lift-off at low speeds, low gas leakage, and non-contact sealing faces.
Sealing Parameters
- Pressure: 0–34.5 bar
- Temperature: ≤260 °C
- Linear Speed: 1.3–25 m/s
- Shaft Diameter Range: 25 mm–152 mm
Materials
Seal face: Silicon carbide with DLC- or DiamondFace-coating
Seat: Silicon carbide with DLC- or DiamondFace-coating
Secondary seals: PTFE or FKM
Metal parts: 1.4006, 1.4313-QT650, 1.4418, 1.4542, Inconel® or other stainless steels
