Features
- Dry running
- Single seal
- Independent of direction of rotation
Advantages

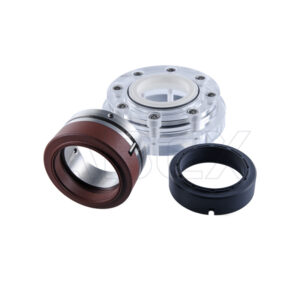

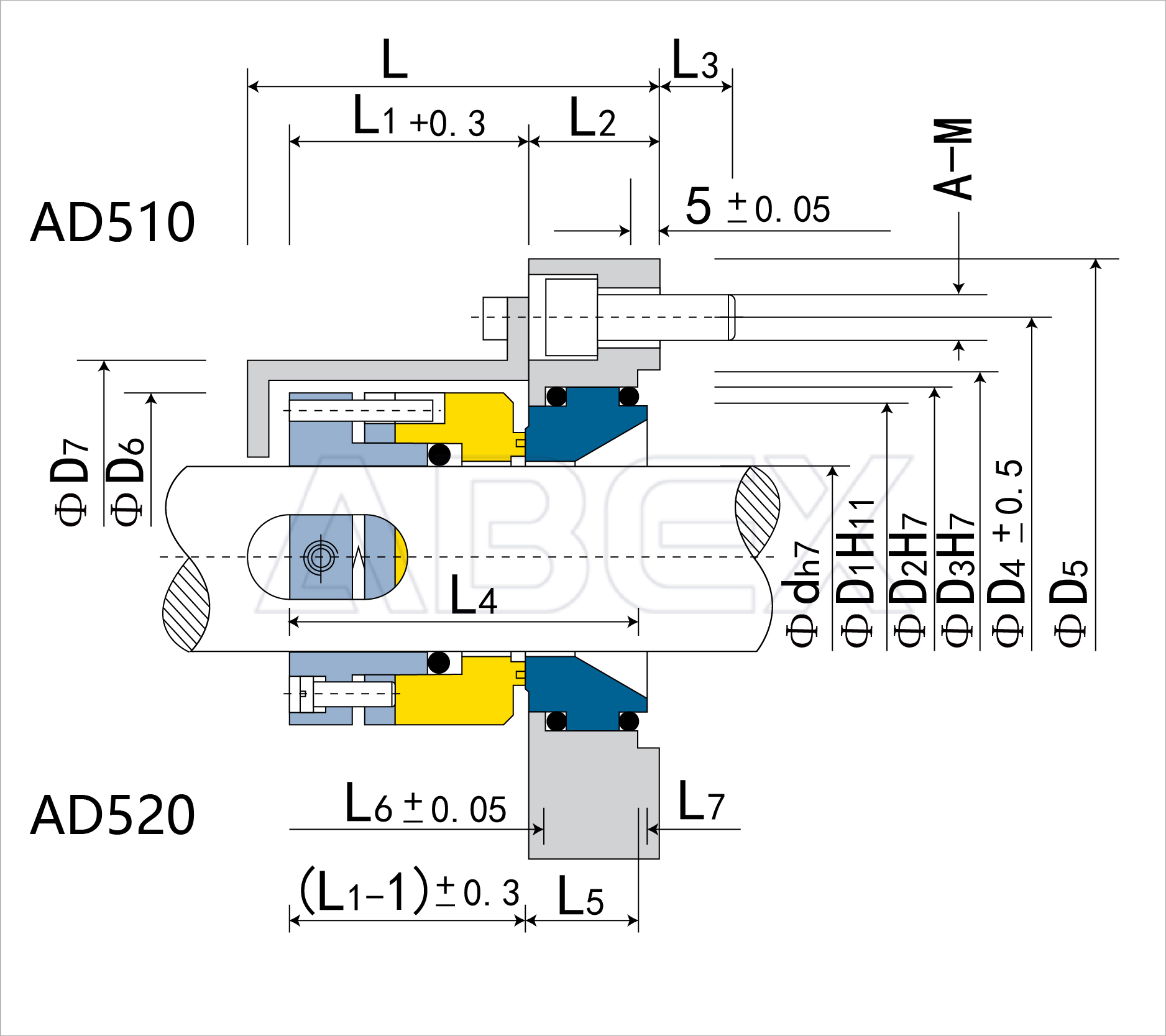

AD510 includes housing
Operating range
Pressure:
p = vacuum (7 mbara) … 5 bar (73 PSI)
Temperature:
t = -30 °C … +175 °C (-22 °F … +347 °F)
Sliding velocity: vg = max. 1.0 m/s (3 ft/s)
Allowable gas consumption: 2 Nl/h
! It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
Materials
Seal face: PTFE, Carbon fiber and glass fiber reinforced
Seat: Silicon carbide (Q1), Aluminium oxide (V)
