BXCS-A04(SCUSI)

Type：	Single Cartridge Seal
Replacement：	AES SCUSI
Temperature：	-30℃ to +205℃
Pressure：	≤2.1Mpa
Speed：	≤25m/s
Material:	B,A,Q1,Q2,U2,E,V,K,F,G,M

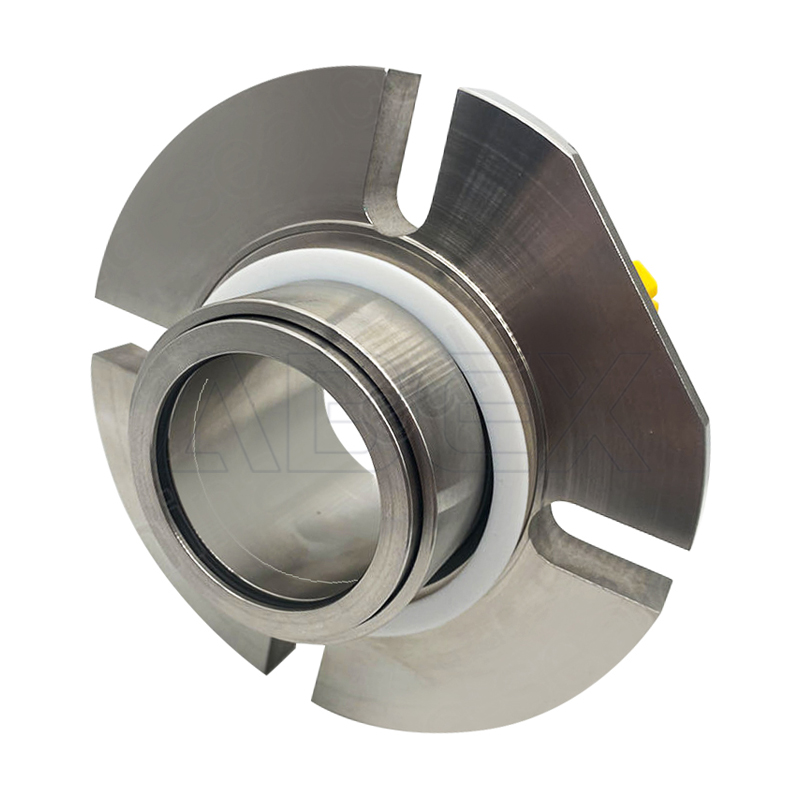

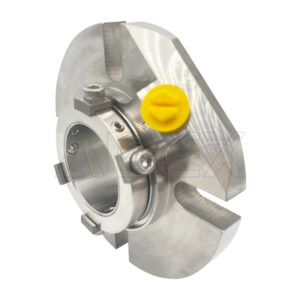

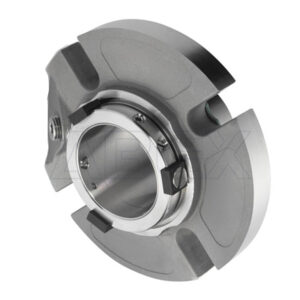

Short Cartridge Mechanical Seal

A short externally mounted cartridge seal, with flush ports and self-aligning faces.

With the aid of Finite Element Analysis (FEA), a range of seals were designed to optimize the use of Silicon Carbide. This third generation seal incorporates an improved self-aligning concept and prevents shock damage to Silicon Carbide on start-up, which is the most significant reason for Silicon Carbide damage in other seal designs.

In addition, the spring loaded rotary centrifuges solids away from the seal face and resists clogging, increasing the range of general service applications to include slurries and some abrasives. Faces remain flat, square to the shaft and suspended solids are prevented from crossing the flat seal faces.

Easy reliable installation
Self-aligning faces
Non-clogging internal rotary
Reduces power consumption
Balanced seal faces

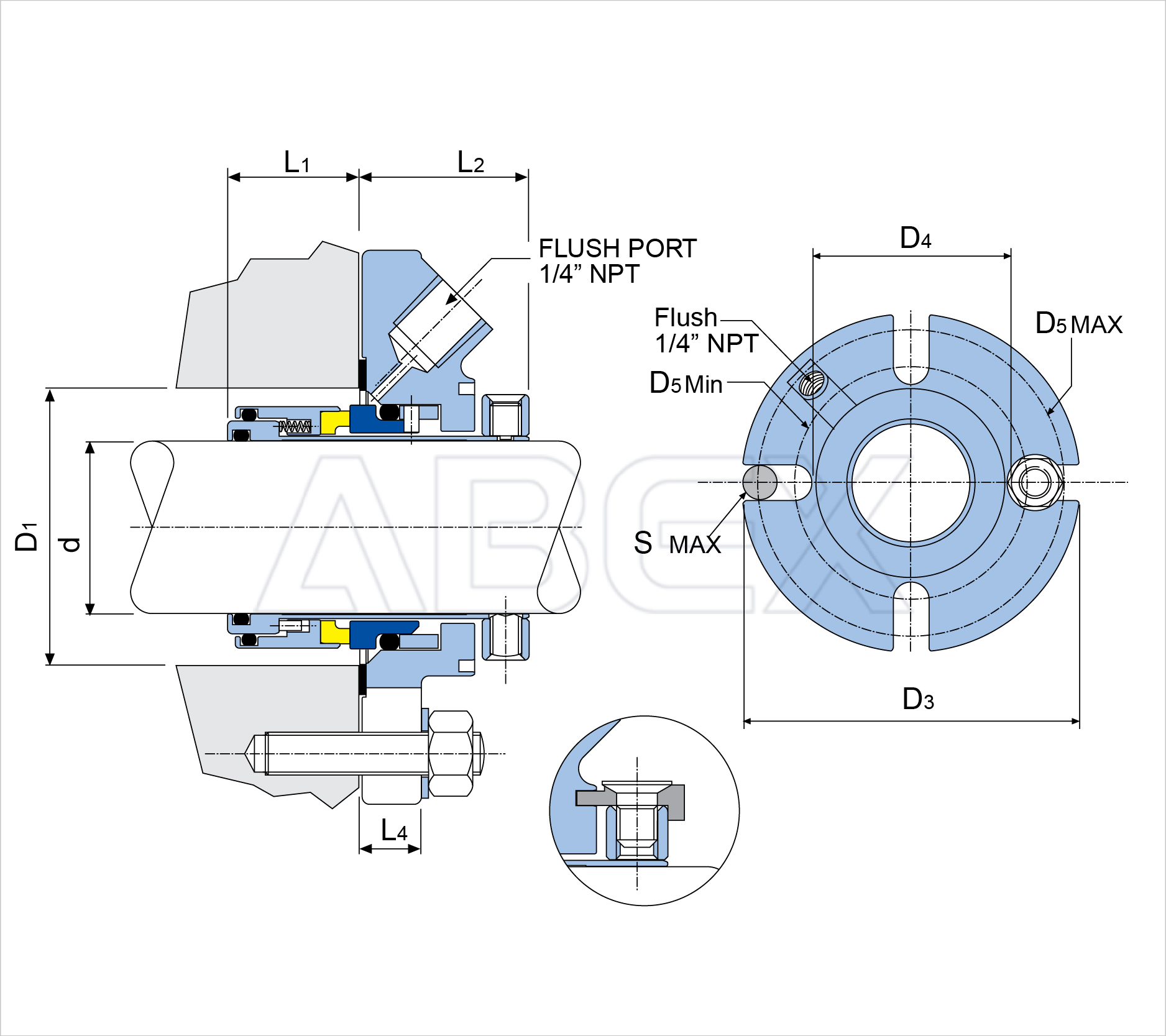

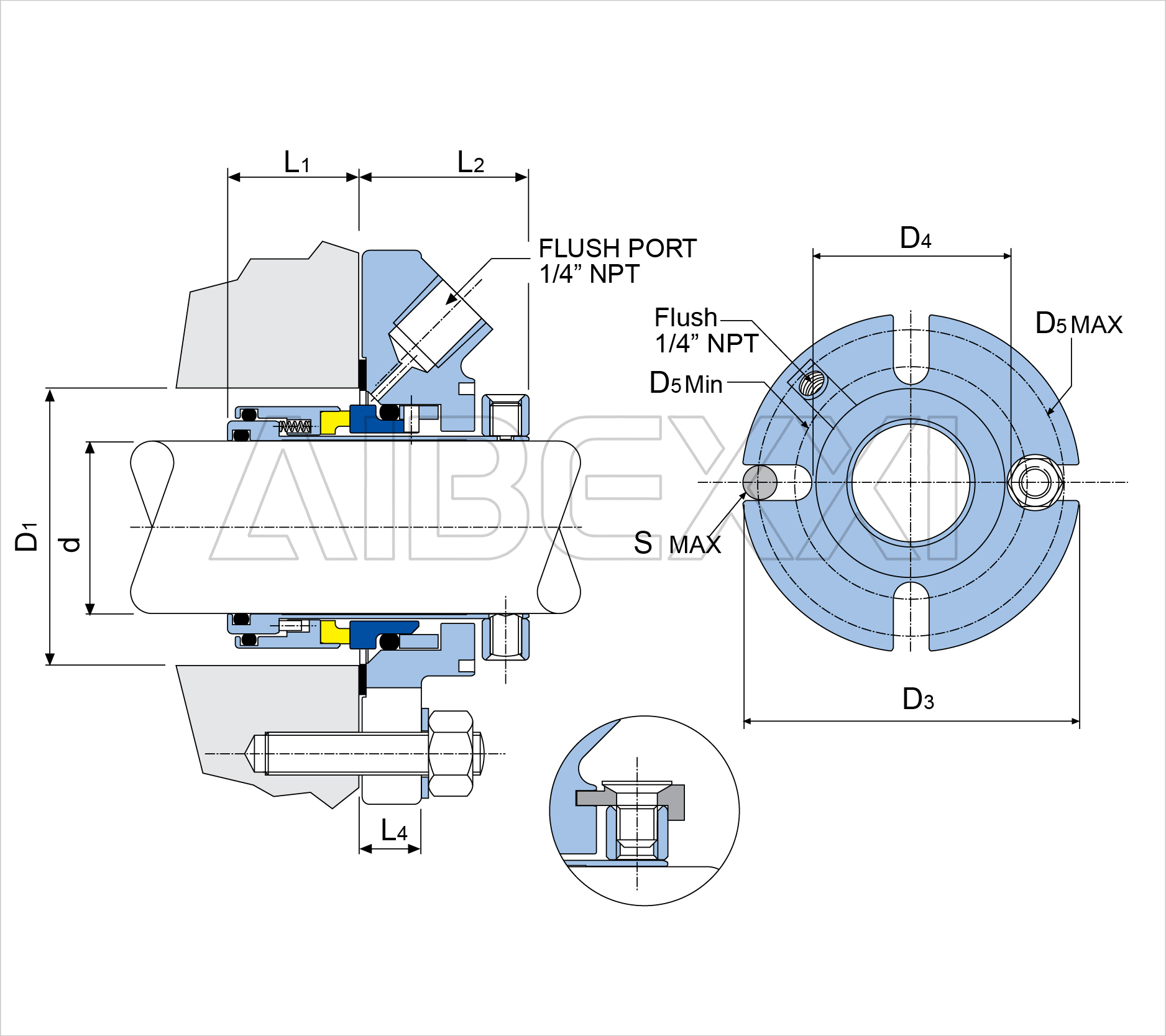

d	D1		D3	D4	D5	L1	L2	L4	S	Bolt Size
mm	min	max	D3	D4	max	L1	L2	L4	max	max	min
24	40	46	101.6	52.4	88.9	26.8	34.4	12.5	45659	14.3	66.7
25	41	49.2	104.8	55.6	92	26.8	34.4	12.5	45659	14.3	69.9
28	44	52.4	108	58.7	95.3	26.8	34.4	12.5	45659	14.3	73
30	46	55.6	111	61.9	98.4	26.8	34.4	12.5	45659	14.3	76.2
32	48	55.6	111	61.9	98.4	26.8	34.4	12.5	45659	14.3	76.2
33	49	55.6	111	61.9	98.4	26.8	34.4	12.5	45659	14.3	76.2
35	50.8	58.7	111	66.7	98.4	26.8	34.4	12.5	45659	14.3	79.4
38	57.2	63.5	127	73	114.3	27.7	34.4	16.4	45659	14.3	87.3
40	57.2	63.5	127	73	114.3	27.7	34.4	16.4	45659	14.3	87.3
43	60.3	63.5	127	73	114.3	27.7	34.4	16.4	45659	14.3	87.3
45	63.5	66.7	133.4	76.2	120.7	27.7	34.4	16.4	45659	14.3	90.5
48	66.7	76.2	139.7	84.1	127	27.7	34.4	16.4	45659	14.3	98.4
50	66.7	76.2	139.7	84.1	127	27.7	34.4	16.4	45659	14.3	98.4
53	69.9	76.2	139.7	84.1	127	29.2	35.9	16.4	45659	14.3	98.4
55	73	84.1	146	93.7	130.2	29.2	35.9	16.4	45785	17.5	111.1
58	76.2	84.1	146	93.7	130.2	29.2	35.9	16.4	45785	17.5	111.1
60	79.4	90.5	152.4	100	136.5	29.2	35.9	16.4	45785	17.5	117.5
63	85.7	93.7	158.8	106.4	142.9	30.5	35.9	16.4	45785	17.5	123.8
65	88.9	95.3	158.8	106.4	142.9	30.5	35.9	16.4	45785	17.5	123.8
70	92.1	98.4	158.8	106.4	142.9	30.5	35.9	16.4	45785	17.5	123.8

d	D1		D3	D4	D5	L1	L2	L4	S	Bollt Size
inch	min	max	D3	D4	max	L1	L2	L4	max	max	min
1	1.625	1.937	4.125	2.187	3.625	1.055	1.354	0.492	45659	0.562	2.75
1.125	1.75	2.062	4.25	2.312	3.75	1.055	1.354	0.492	45659	0.562	2.875
1.25	1.875	2.187	4.375	2.437	3.875	1.055	1.354	0.492	45659	0.562	3
1.375	2	2.312	4.375	2.625	3.875	1.055	1.354	0.492	45659	0.562	3.125
1.5	2.25	2.5	5	2.875	4.5	1.09	1.393	0.644	45659	0.562	3.437
1.625	2.375	2.5	5	2.875	4.5	1.09	1.393	0.644	45659	0.562	3.437
1.75	2.5	2.625	5.25	3	4.75	1.09	1.393	0.644	45659	0.562	3.562
1.875	2.625	3	5.5	3.312	5	1.09	1.393	0.644	45659	0.562	3.875
2	2.75	3	5.5	3.312	5	1.15	1.413	0.644	45659	0.562	3.875
2.125	2.875	3.312	5.75	3.687	5.125	1.15	1.413	0.644	45785	0.687	4.375
2.25	3	3.312	5.75	3.687	5.125	1.15	1.413	0.644	45785	0.687	4.375
2.375	3.125	3.562	6	3.937	5.375	1.15	1.413	0.644	45785	0.687	4.625
2.5	3.375	3.687	6.25	4.187	5.625	1.199	1.413	0.644	45785	0.687	4.875
2.625	3.5	3.75	6.25	4.187	5.625	1.199	1.413	0.644	45785	0.687	4.875
2.75	3.625	3.875	6.25	4.187	5.625	1.199	1.413	0.644	45785	0.687	4.875

BXCS-A04(SCUSI)
