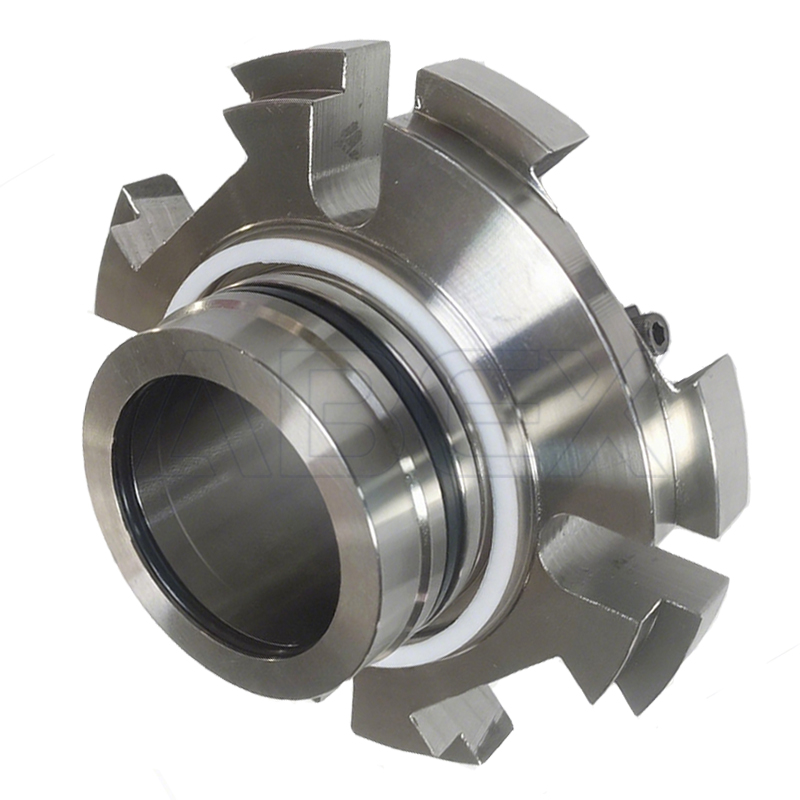

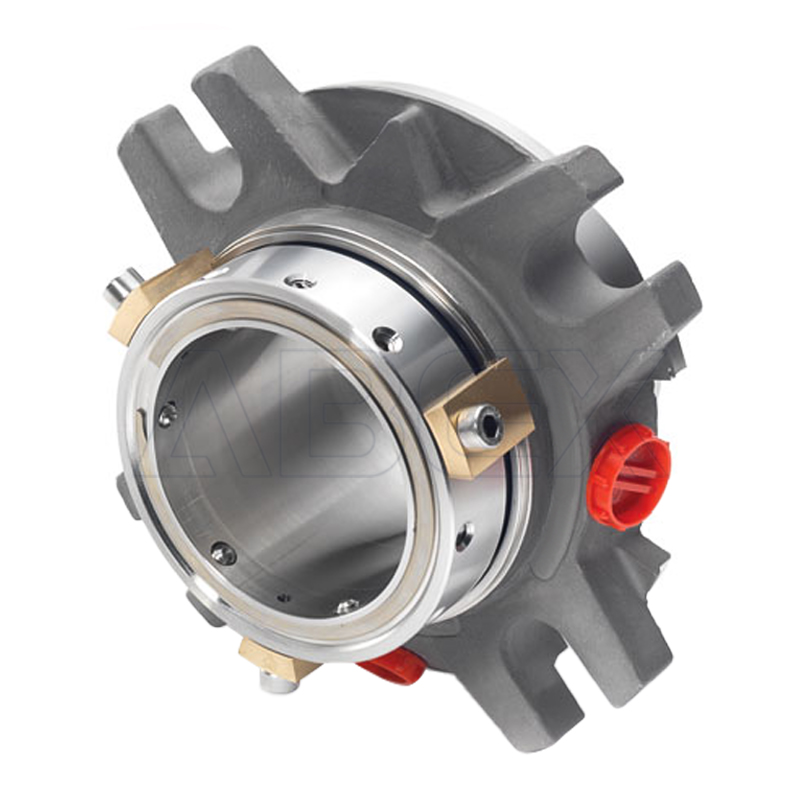

BXCS-A07(DISP)

Type：	Double Cartridge Seal
Replacement：	AES DISP
Temperature：	-30℃ to +205℃
Pressure：	≤2.1Mpa
Speed：	≤25m/s
Material：	B,A,Q1,Q2,U1,V,K,E,N,F,G,M

Double Stationary Seal with Pumping Scroll

Features:

Efficient bi-directional pumping circulates barrier fluid for effective seal face cooling and extended seal life.
High-integrity drive design features improve reliability and seal life
Thin radial faces reduce heat generation compared to alternative dual balanced designs
Supplied with quench, flush and drain ports
Sizes available from 1.000″ to 3.375″ (24mm – 85mm) in standard and ANSI plus gland formats

Hot seal faces = poor seal life. The DISP™ double seal features a highly effective bi-directional flow inducer with a ‘heat removal’ flow path to directly combat this issue.

Ineffective heat removal within the barrier fluid is estimated to account for over 40% of all double cartridge seal failures

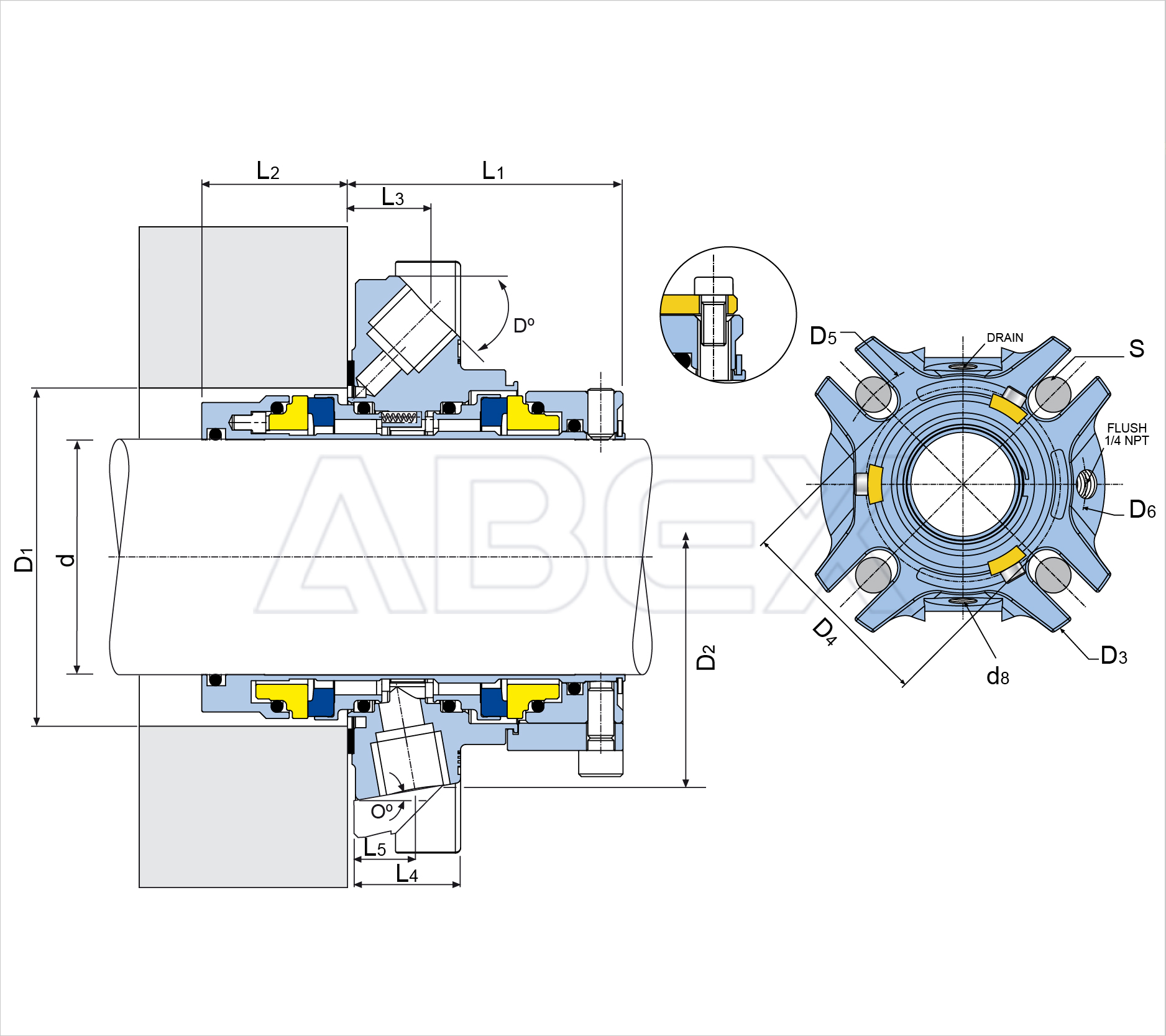

d	D1		D2	D3	D4	D5		D6	L1	L2	L3	L4	L5	S	d8	O
mm	min	max	D2	D3	D4	min	max	D6	L1	L2	L3	L4	L5	max	(NPT)	O
24	41	48.6	71.4	104.8	57.2	71.2	92.8	79.1	52.6	28.2	17.9	23.8	15	12	1/4	10
25	41	48.6	71.4	104.8	57.2	71.2	92.8	79.1	52.6	28.2	17.9	23.8	15	12	1/4	10
28	44	52.6	76.2	108	60.4	74.3	96	82.6	52.6	28.2	17	23.8	14.1	12	1/4	10
30	46	54.7	78	111.1	63.5	77.5	99	84.1	52.6	28.2	17.8	23.8	13	12	1/4	10
32	48	54.7	78.5	111.1	63.5	77.5	99	84.1	52.6	28.2	17.8	23.8	13	12	1/4	10
33	49	54.7	78.5	111.1	63.5	77.5	99	84.1	52.6	28.2	17.8	23.8	13	12	1/4	10
33K	49	54.7	82.5	98.5	63.5	77.5	86.5	97	53.3	27.7	13.7	21.7	13.7	12	1/4	15
35	51	58.6	78.5	111.1	66.7	80.7	99	83.8	52.6	28.2	17.6	23.8	13	12	1/4	10
38	58	63.6	85.7	127	72	85.9	115	92.1	53.3	28	16.2	21.7	12.7	12	1/4	10
40	60	64.7	85.7	127	72	85.9	115	92.1	53.3	28	16.2	21.7	12.7	12	1/4	10
43	63	68.6	89.7	133.4	76.8	90.8	121.3	94.9	53.3	28	16.1	21.7	13	12	1/4	10
43K	63	71.7	93.5	119.7	81	95	107.6	101.6	53.3	28	18.9	17.1	22.9	12	1/4	45
45	65	70.2	88.9	133.4	76.8	90.8	121.4	95.3	53.3	28	16.1	21.7	12.7	12	1/4	10
48	67	70.2	88.9	133.4	76.8	90.8	121.4	95.3	53.3	28	16.2	21.7	12.7	12	1/4	10
50	70	77.7	95.3	139.7	86	100	127.7	101.6	53.3	28	16.2	21.7	12.7	12	1/4	10
53	73	84.7	101.3	146.1	93.6	111.1	130	108	53.3	28	16.2	21.7	13.4	16	1/4	10
55	75	84.7	101.3	146.1	93.6	111.1	130	108	53.3	28	16.2	21.7	13.4	16	1/4	10
58	78	84.7	11.3	146.1	93.6	111.1	130	108	53.3	28	16.2	21.7	13.4	16	1/4	10
60	80	89.6	104.4	152.4	100	117.5	136.4	114.3	53.3	28	16.2	21.7	13.7	16	1/4	10
63	82.6	98.6	121.2	177.8	109.5	127	161.8	126.8	53.9	27.4	18.8	23.9	13.5	16	3/8	10
65	85.7	98.7	121.2	177.8	109.5	127	161.8	126.8	53.9	27.4	18.8	23.9	13.5	16	3/8	10
70	90	98.7	121.2	177.8	109.5	127	161.8	126.8	53.9	27.4	18.8	23.9	13.5	16	3/8	10
75	98.4	113.5	130.6	190.5	125.4	142.9	14.5	137.2	60.2	33	18.5	23.9	13.8	16	3/8	10
80	101.6	113.5	130.6	190.5	125.4	142.9	174.5	138.1	60.2	33	18	23.9	13.7	16	3/8	10
85	108	121.5	140.2	203.2	135	156	185	146	60.2	33	18.9	23.9	13.4	20	3/8	10

d	D1		D2	D3	D4	D5		D6	L1	L2	L3	L4	L5	S	d8	O
inch	min	max	D2	D3	D4	min	max	D6	L1	L2	L3	L4	L5	max	(NPT)	O
1	1.625	1.937	2.812	4.125	2.25	2.812	3.625	3.115	2.07	1.11	0.705	0.937	0.59	0.5	1/4	10
1.125	1.75	2.093	3	4.25	2.375	2.937	3.75	3.25	2.07	1.11	0.705	0.937	0.55	0.5	1/4	10
1.25	1.875	2.154	3.091	4.375	2.5	3.062	3.875	3.312	2.07	1.11	0.7	0.937	0.511	0.5	1/4	10
1.375	2	2.308	9.091	4.375	2.625	3.062	3.875	3.3	2.07	1.11	0.693	0.937	0.511	0.5	1/4	10
1.5	2.25	2.5	3.375	5	2.832	3.375	4.5	3.625	2.099	1.103	0.638	0.854	0.5	0.5	1/4	10
1.625	2.375	2.7	3.532	5.25	3.022	3.573	4.75	3.737	2.099	1.103	0.638	0.854	0.5	0.5	1/4	10
1.75	2.5	2.75	3.5	5.25	3.022	3.573	4.75	3.75	2.099	1.103	0.634	0.854	0.5	0.5	1/4	10
1.875	2.625	2.75	3.5	5.25	3.022	3.573	4.75	3.75	2.099	1.103	0.638	0.854	0.5	0.5	1/4	10
2	2.75	3.062	3.75	5.5	3.386	3.937	5	4	2.099	1.103	0.638	0.854	0.5	0.5	1/4	10
2.125	2.875	3.375	3.989	5.75	3.687	4.375	5.125	4.25	2.099	1.103	0.638	0.854	0.528	0.625	1/4	10
2.25	3	3.375	3.989	5.75	3.687	4.375	5.125	4.25	2.099	1.103	0.638	0.854	0.528	0.625	1/4	10
2.375	3.125	3.5	4.111	6	3.987	4.625	5.375	4.5	2.099	1.103	0.638	0.854	0.54	0.625	1/4	10
2.5	3.25	3.875	4.772	7	4.312	5	6.375	4.993	2.125	1.083	0.741	0.942	0.532	0.625	3/8	10
2.625	3.375	3.875	4.772	7	4.312	5	6.375	4.993	2.125	1.083	0.741	0.942	0.532	0.625	3/8	10
2.75	3.625	3.937	4.772	7	4.312	5	6.375	4.993	2.125	1.083	0.741	0.942	0.532	0.625	3/8	10
2.875	3.75	4.437	5.14	7.5	4.937	5.625	6.875	5.375	2.375	1.3	0.742	0.942	0.545	0.625	3/8	10
3	3.875	4.5	5.142	7.5	4.937	5.625	6.875	5.402	2.375	1.3	0.728	0.942	0.545	0.625	3/8	10
3.125	4	4.5	5.142	7.5	4.937	5.625	6.875	5.438	2.375	1.3	0.709	0.942	0.545	0.625	3/8	10
3.25	4.125	4.75	5.52	8	5.312	6.125	7.25	5.75	2.375	1.3	0.734	0.942	0.528	0.75	3/8	10
3.375	4.25	4.75	5.52	8	5.312	6.125	7.25	5.75	2.375	1.3	0.744	0.942	0.528	0.75	3/8	10
